Description

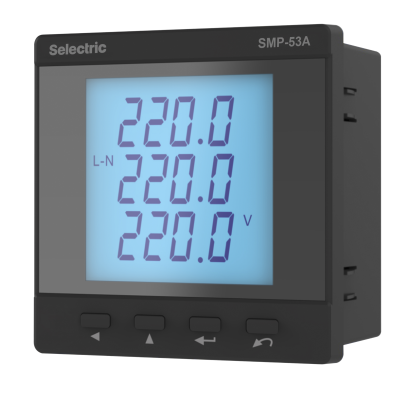

Multifunctional measuring instruments SMP are designed for measuring alternating current voltage and strength, active, reactive, total electrical power, active and reactive electrical energy, alternating current frequency, and power factor in three-phase, three-wire, and three-phase, four-wire electrical networks.
Multi-function measuring instrument Selectric SMP-53A-LM72 accuracy class 0.5 S; AC 57.7 / 100 V~220/380 V; Un=220V AC/DC, 50Hz; 2xDI; 1xRS-485 RTU;
Code
SMP-53A-LM72-C5325BAE
Communication Interfaces & Protocols
RS-485;
Modbus RTU;
Power Supply Voltage
95–250V AC/DC; 47–440 Hz
IP rating
Front panel: IP65 Housing: IP30
Voltage Inputs (V1, V2, V3, VN)
3x57.7/100V~220/380V, 50Hz
Digital I/O Support
2 digital inputs DI; 1 pulse energy output
Price:
18 377 ₽
Multi-function measuring instrument Selectric SMP-53A-LM96 accuracy class 0.5 S; AC 57.7 / 100 V~220/380 V; Un=220V AC/DC, 50Hz; 4xDI, 2xDO; 1xRS-485 RTU;
Code
SMP-53A-LM96-C5325BAE
Communication Interfaces & Protocols
RS-485;
Modbus RTU;
Power Supply Voltage
95–250V AC/DC; 47–440 Hz
IP rating
Front panel: IP65 Housing: IP30
Voltage Inputs (V1, V2, V3, VN)
3x57.7/100V~220/380V, 50Hz
Digital I/O Support
4 digital DI inputs; 2 DO relay outputs; 1 pulse energy output
Price:
22 972 ₽
Multifunctional measuring instrument Selectric SMP-53A-E accuracy class 0.5 S; AC 380V/690V; Un=220V AC/DC, 50Hz; 4xDI, 2xDO; 3xRTD (connection of PT100 sensors); 1xEthernet TCP; 1xRS-485 RTU;
Code
SMP-53A-E-5925ACE
Communication Interfaces & Protocols
Ethernet 10/100Base-T;
RS-485;
Modbus TCP/RTU;
BACnet MSTP;
DNP 3.0;
HTTP;
SNTP;
SMTP;
TFTP;
EtherGate;
Power Supply Voltage
95–250V AC/DC, 47–440 Hz; 20–60V DC
IP rating
Front panel: IP65 Housing: IP30
Voltage Inputs (V1, V2, V3, VN)
400V L-N/690V L-L, 50Hz
Digital I/O Support
4 digital inputs DI; 2 relay outputs DO; 3xRTD (connection of PT100 sensors)
Price:
122 513 ₽
Multi-function measuring instrument Selectric SMP-53A-E accuracy class 0.5 S; AC 380V/690V; Un=220V AC/DC, 50Hz; 4xDI, 2xDO; 2xAO 0/4-20 mA; 1xEthernet TCP; 1xRS-485 RTU;
Code
SMP-53A-E-5925ABE
Communication Interfaces & Protocols
Ethernet 10/100Base-T;
RS-485;
Modbus TCP/RTU;
BACnet MSTP;
DNP 3.0;
HTTP;
SNTP;
SMTP;
TFTP;
EtherGate;
Power Supply Voltage
95–250V AC/DC, 47–440 Hz; 20–60V DC
IP rating
Front panel: IP65 Housing: IP30
Voltage Inputs (V1, V2, V3, VN)
400V L-N/690V L-L, 50Hz
Digital I/O Support
4 digital DI inputs; 2 DO relay outputs; 2 analog outputs 0/4–20 mA
Price:
122 513 ₽
Multi-function measuring instrument Selectric SMP-53A-E accuracy class 0.5 S; AC 380V/690V; Un=220V AC/DC, 50Hz; 4xDI, 2xDO; 1AI+1R+1I4; 1xEthernet TCP; 1xRS-485 RTU;
Code
SMP-53A-E-5925AAE
Communication Interfaces & Protocols
Ethernet 10/100Base-T;
RS-485;
Modbus TCP/RTU;
BACnet MSTP;
DNP 3.0;
HTTP;
SNTP;
SMTP;
TFTP;
EtherGate;
Power Supply Voltage
95–250V AC/DC, 47–440 Hz; 20–60V DC
IP rating
Front panel: IP65 Housing: IP30
Voltage Inputs (V1, V2, V3, VN)
400V L-N/690V L-L, 50Hz
Digital I/O Support
4 digital inputs DI; 2 relay outputs DO; Analog input 0/4–20 mA; Neutral current measurement input I4; Residual (leakage) current measurement input Ir
Price:
122 513 ₽
Multi-function measuring instrument Selectric SMP-53A-E accuracy class 0.5 S; AC 380V/690V; Un=220V AC/DC, 50Hz; 4xDI, 2xDO; 1xEthernet TCP; 1xRS-485 RTU;
Code
SMP-53A-E-5925AXE
Communication Interfaces & Protocols
Ethernet 10/100Base-T;
RS-485;
Modbus TCP/RTU;
BACnet MSTP;
DNP 3.0;
HTTP;
SNTP;
SMTP;
TFTP;
EtherGate;
Power Supply Voltage
95–250V AC/DC, 47–440 Hz; 20–60V DC
IP rating
Front panel: IP65 Housing: IP30
Voltage Inputs (V1, V2, V3, VN)
400V L-N/690V L-L, 50Hz
Digital I/O Support
4 digital inputs DI; 2 relay outputs DO
Price:
122 513 ₽
